Rationale

Some kernel mode anti-cheat solutions have now begun to obscure KPROCESS.DirectoryTableBase by effectively moving the address space via page table manipulation on startup. This prevents attaching to the real process space and makes it slightly more difficult for cheats and malware to to read/write the protected memory.

The problem? User processes were realistically already not able to interact with the protected memory, and kernel drivers and hypervisors have access to the underlying physical memory. Currently EAC and VKG implement some form of CR3 abuse, but using monkey bruteforce™ we can walk all physical ranges and parse the PML4.

In theory, this can also be achieved from user mode as page tables are mapped to virtual memory with some assistance. We can even force a TLB flush using SwitchToThread(). The method relies on finding the self-referencing PML4 entry, so the caller must have some level of access to the underlying physical memory, or leak non-exported names like MmPteBase, MmPdeBase and MmPfnDatabase which are used internally. More closely studying MmGetVirtualForPhysical() is recommended.


Technique to Find Directory Table

We first cache the physical memory ranges. Here we can either call MmGetPhysicalMemoryRanges() or implement the same behavior ourselves. The ReactOS source can help provide context, but obviously look at the disassembly of MiReferencePageRuns() as well.

When walking the pages, we assume the page is the correct PML4 and attempt a translation using a known user address like EPROCESS.SectionBaseAddress.

#define _pfn_to_page(pfn) (pfn << _page_shift)
#define _page_to_pfn(pfn) (pfn >> _page_shift)

u64 mm_find_process_cr3(EPROCESS* proc)
{
  auto physical_range = MmGetPhysicalMemoryRanges(); // free with ExFreePool
  if (!physical_range)
    return 0;

  // for every physical range
  // for every page
  // for every page table entry -- self-ref can have any idx

  virt_addr_t mz_base;
  mz_base.val = (u64)proc->SectionBaseAddress;

  do {
    u64 src = (u64)(physical_range->BaseAddress);
    u64 dst = (u64)(physical_range->BaseAddress) + (u64)(physical_range->NumberOfBytes);

    for (u64 it = src; it < dst; it += PAGE_SIZE)
    for (u32 pml4e_idx = 0; pml4e_idx < 512; pml4e_idx++)
    {
      auto self_ref = read<pml4e_t>(it + pml4e_idx * sizeof(pml4e_t));
      if (it != _pfn_to_page(self_ref.pfn)) // self-ref?
        continue;

      // ok - attempt translation
      auto pml4e = read<pml4e_t>(it + mz_base.pml4_idx * sizeof(pml4e_t));
      if (!pml4e.present)
        break; // bad cr3, check next page...

      auto pml3e = read<pml3e_t>(_pfn_to_page(pml4e.pfn) + mz_base.pml3_idx * sizeof(pml3e_t));
      if (!pml3e.present)
        break;

      auto pml2e = read<pml2e_t>(_pfn_to_page(pml3e.pfn) + mz_base.pml2_idx * sizeof(pml2e_t));
      if (!pml2e.present)
        break;

      auto pml1e = read<pml1e_t>(_pfn_to_page(pml2e.pfn) + mz_base.pml1_idx * sizeof(pml1e_t));
      if (!pml1e.present)
        break;

      if (read<u16>(_pfn_to_page(pml1e.pfn) + mz_base.offset) != 'ZM') // check PE magic
        break;

      return _page_to_pfn(it); // found cr3!
    }
    physical_range++;
  } while (physical_range->BaseAddress);
}


The Result

There’s a lot more you can do in the way of filtering out bad pages before running expensive read operations, but I leave this as an exercise to the reader. In any case, this serves as a good proof of concept. Keep in mind that the latest Virtualization Based Security or VBS enforces read-only state at the hypervisor level via Second Level Address Translation or SLAT. However, other values like page frame number remain unprotected. This will be discussed in a separate post in the future.

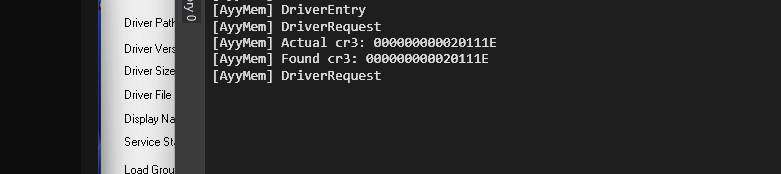

Driver Output
